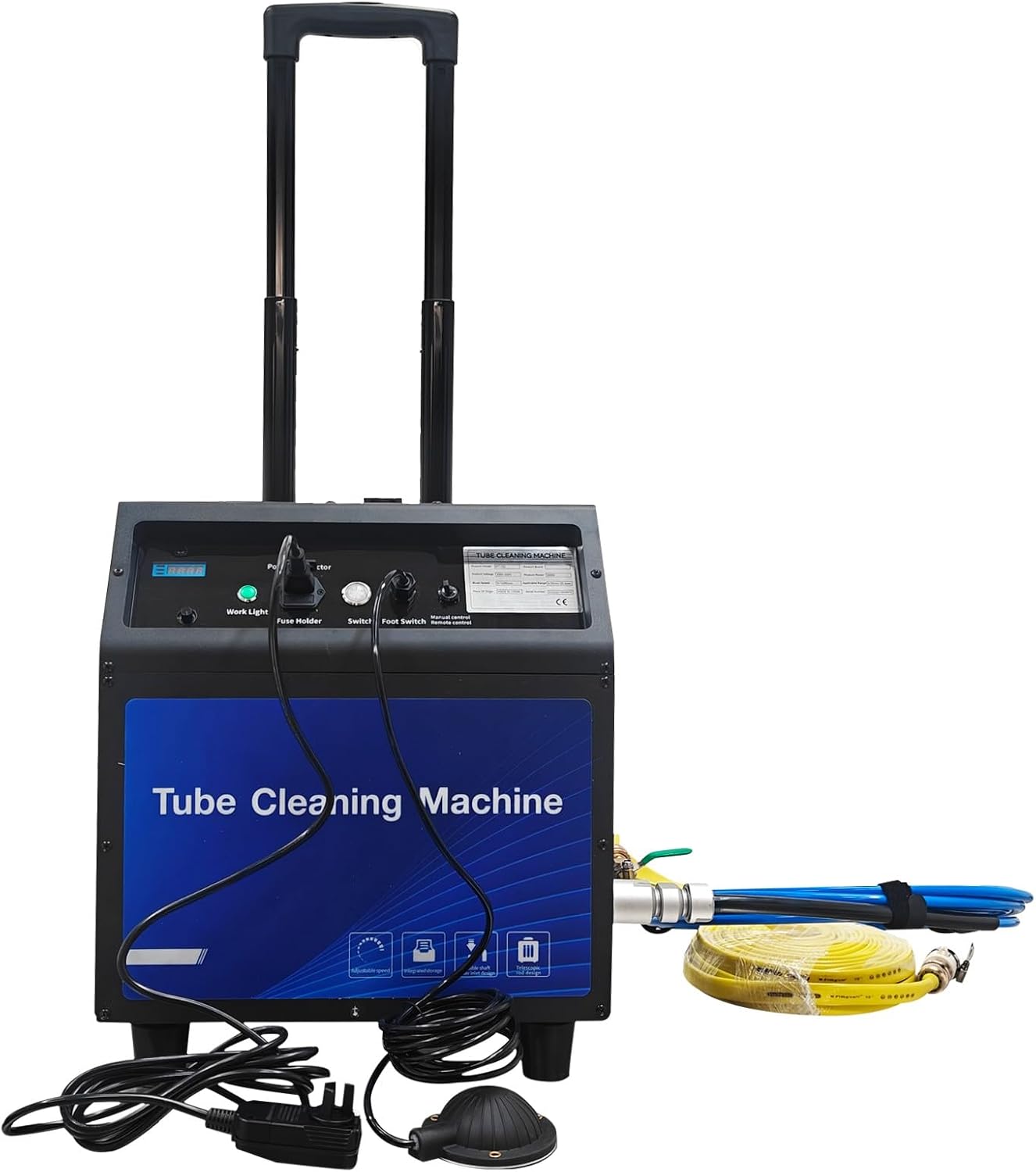

Central Air Conditioning Condenser Pipeline Cleaning Machine 220V Heat Exchanger Duct Cleaner Pipe Dirt Removal Equipment with Transformer Adjustable Speed Applicable Diameter 0.5-0.7in

Parameter Voltage: 220V Single-phase (Note: One 110V transformer is included as a free gift. If your power supply is 110V, please connect the machine to the transformer and then connect the transformer to your power supply.) Power: 550W Rotating speed: 0-1400rpm Diameter of flexible shaft: 10mm (0.4in) Length of flexible shaft: 7.6m (24.9ft) Nylon brush: Φ20mm (0.8in) *10pcs Applicable pipeline diameter: 14-18mm (0.5-0.7 inch) Quick connection water pipe: 20m (65.6ft) Foot switch: 3m (9.8ft) Machine size: 42*31.5*49cm (16.5*12.4*19.3 inches) (The stretching height of the pull rod is 96.5cm/38in.) Net Weight: 46kg (101.4LBs) Shipping Weight: 134LB Outer Packaging Size: 30.91*20.08*21.65in Precaution 1. Before starting the machine, ensure the flexible shaft is fully unwound. Otherwise, the shaft core may be broken. 2. Wear safety goggles and protective gloves before operation. Do not touch the transmission device to avoid hazards while the equipment is in operation. 3. Place the equipment on a clean, dry and stable ground. Keep the equipment clean at all times. 4. Do not use the equipment when the ambient temperature exceeds 40˚C. 5. The equipment must be grounded. Ensure the power supply parameters match the specifications of equipment. 6. The minimum bending diameter of the flexible shaft is 50cm. Straighten the flexible shaft as much as possible to prevent the shaft core from kinking and prolong the service life. 7. Ensure that the water inside the equipment does not freeze. 8.If the flexible shaft is not to be used for a long period of time, the head of the flexible shaft should be disassembled, wiped dry and coated with anti-rust oil. Item included One Set of Central Air Conditioning Condenser Pipeline Cleaning Machine(022874)

• Cornering Ability: The cleaning machine can easily pass through bends, suitable for straight, U-shaped and S-shaped pipes with high flexibility. Suitable for cleaning pipes with a diameter of 14-18mm (0.5-0.7in).
• Powerful 550W Motor: The 550W high-power provides sufficient power for cleaning. The flexible shaft and brush head rotate at high speed inside the pipeline under the drive of the motor, physical descaling inside the pipeline.Physical descaling and strong cleaning ability.

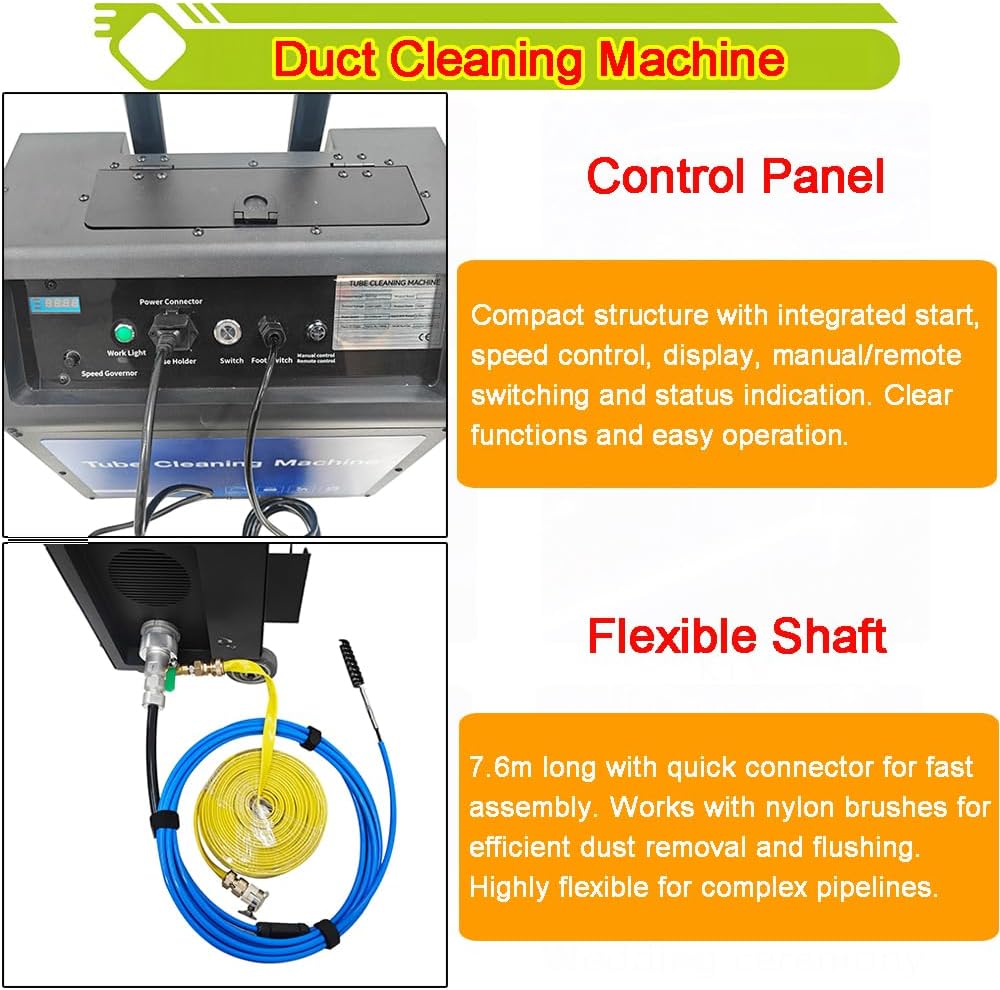

• Humanized Design: The rotating speed can be adjusted within the range of 0-1400r/min, and stepless variable-frequency speed control is adopted. The telescopic handle design makes the machine easy to carry and pull by hand. Equipped with a shaft storage rack and a small storage box for convenient accessory storage.
• Flexible Shaft: The 7.6M flexible shaft easily navigates through pipes and reaches inaccessible areas beyond the reach of traditional cleaning tools. Dry wet separation protects the host, water enters the flexible shaft directly, preventing water from entering the main unit due to seal damage and extending its service life.
• Application: The Condenser Tube Cleaning Machine is a professional tube cleaning device designed primarily for removing scale, rust and sludge inside the condenser tubes of central air conditioning systems, enhancing and sustaining heat exchange efficiency. It enjoys wide application in HVAC, refrigeration, industrial cooling and related industries.
